SEM 2 PROJECT 1 : "The Old Charm of Port Dickson"

Port Dickson offer some unique style of architecture. These heritage areas have been a melting pot of different people, cultures, races and religions. The uniqueness of these cities need to be observed and appreciated. As a student endeavours into built envi. studies, a careful mind, detail observation and critical thought on all the architectural and planning elements are compulsory to be adequate with. Pay full attention to detailing, scales, shapes, forms, rythms, hierarchy, harmony, repetitions, colours, materials, a method of construction and so on.

We are required to produce 3D shophouse building facade found in Port Dickson with 1: 50 scale on A3 board in landscape orientation.

Learning Outcomes:

1. Able to sketch objects and building design based on understanding basic design principles and elements including construction.

2. Elaborate with the aid of drawing on understanding of design principles and building construction.

3. Enhance understanding on the building elements and principles of design through observation on existing heritage building/monument/landmark.

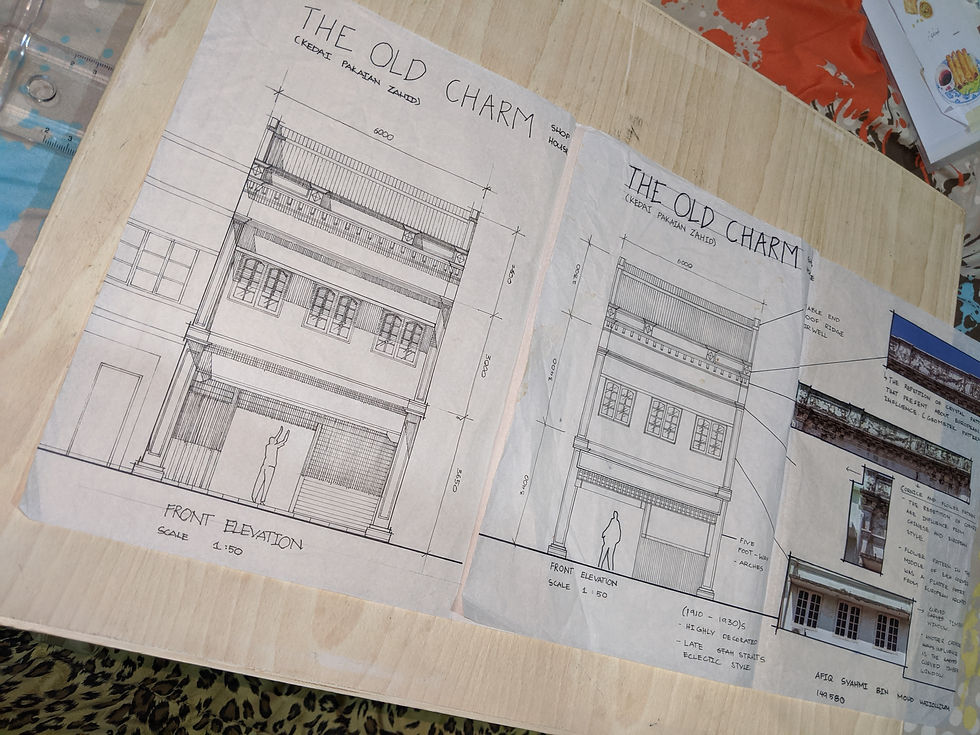

KEDAI PAKAIAN ZAHID (1910 - 1930S)

CRIT SESSION

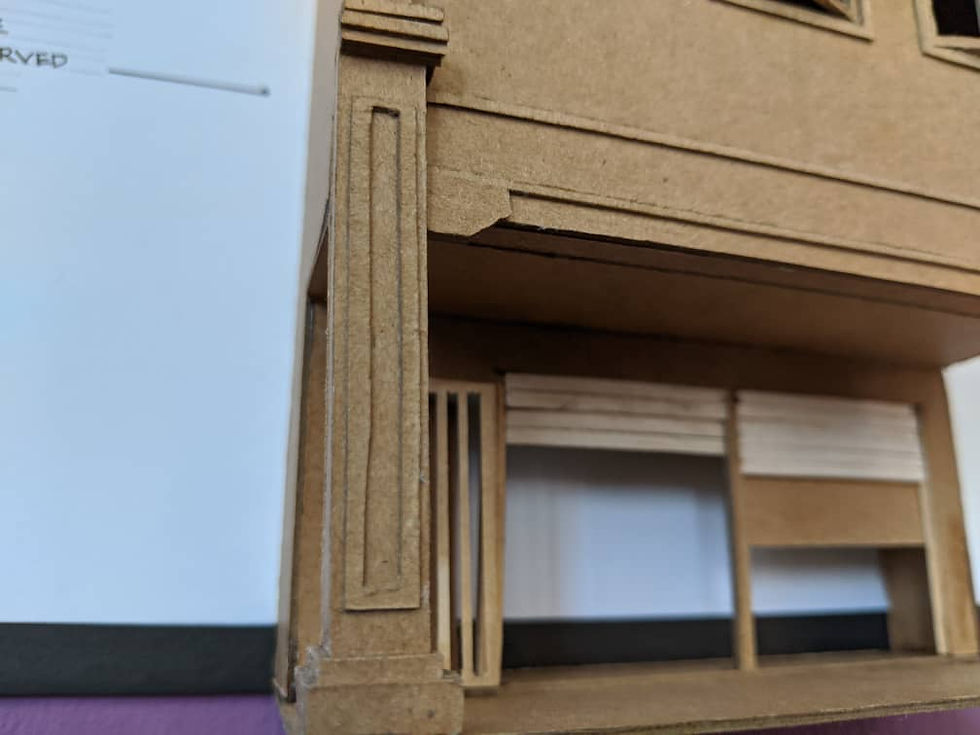

FINAL PRODUCT

PICTURE OF ME AND MY FRIEND
